Archery Ballistics Gel Mold 14L x 12W x 7H  Box

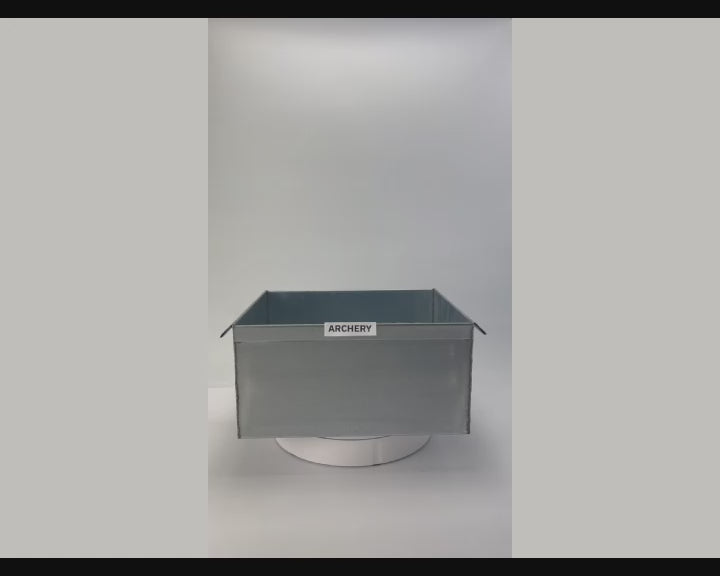

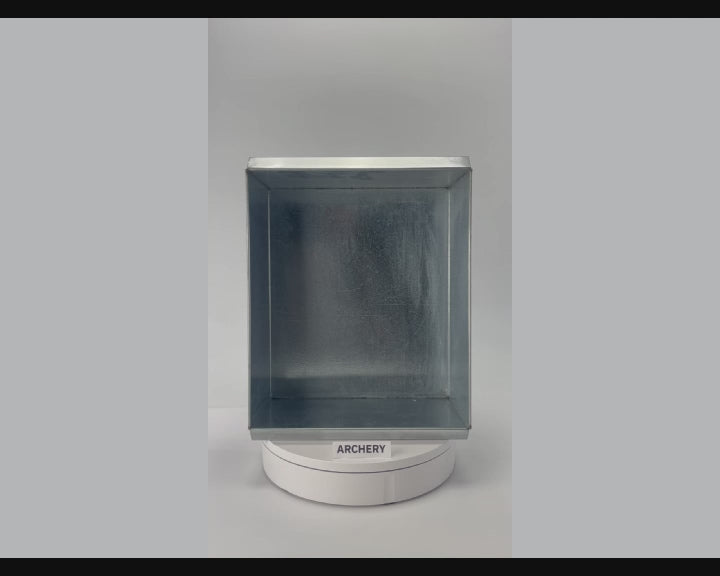

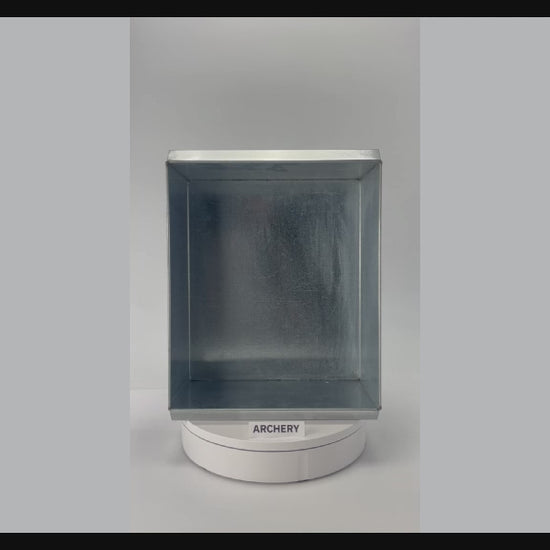

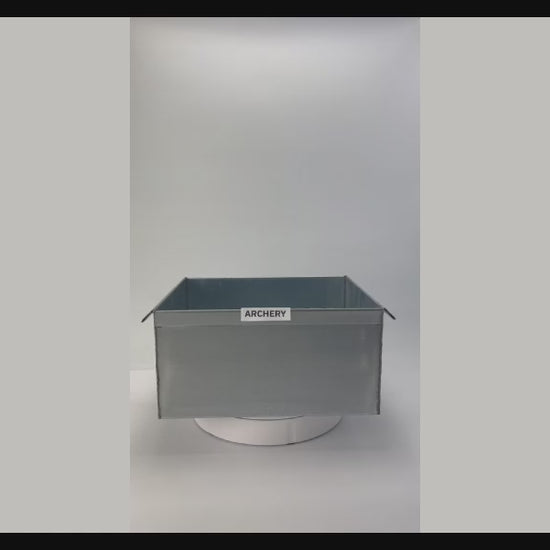

Introducing the Archery Ballistics Mold 14L x 12W x 7H Box! This box is built by The Metal Box Company and made of 100% US sourced Materials.  This 100% equivalent to Clear Ballistics Archery Mold without the extra cost! This robust, rectangular metal box is designed to produce a 14L x 12W x 6H inches ballistic gel block with rounded corners and glass-smooth sides. Crafted from galvanized hot-rolled steel, it boasts internal dimensions of 14L x 12W x 7H inches. Made with 18-gauge steel (0.0478 inches or 1.214 mm thick), this durable box weighs just 8 lbs., 8 oz. Perfect for your ballistic testing needs!

Construction Excellence

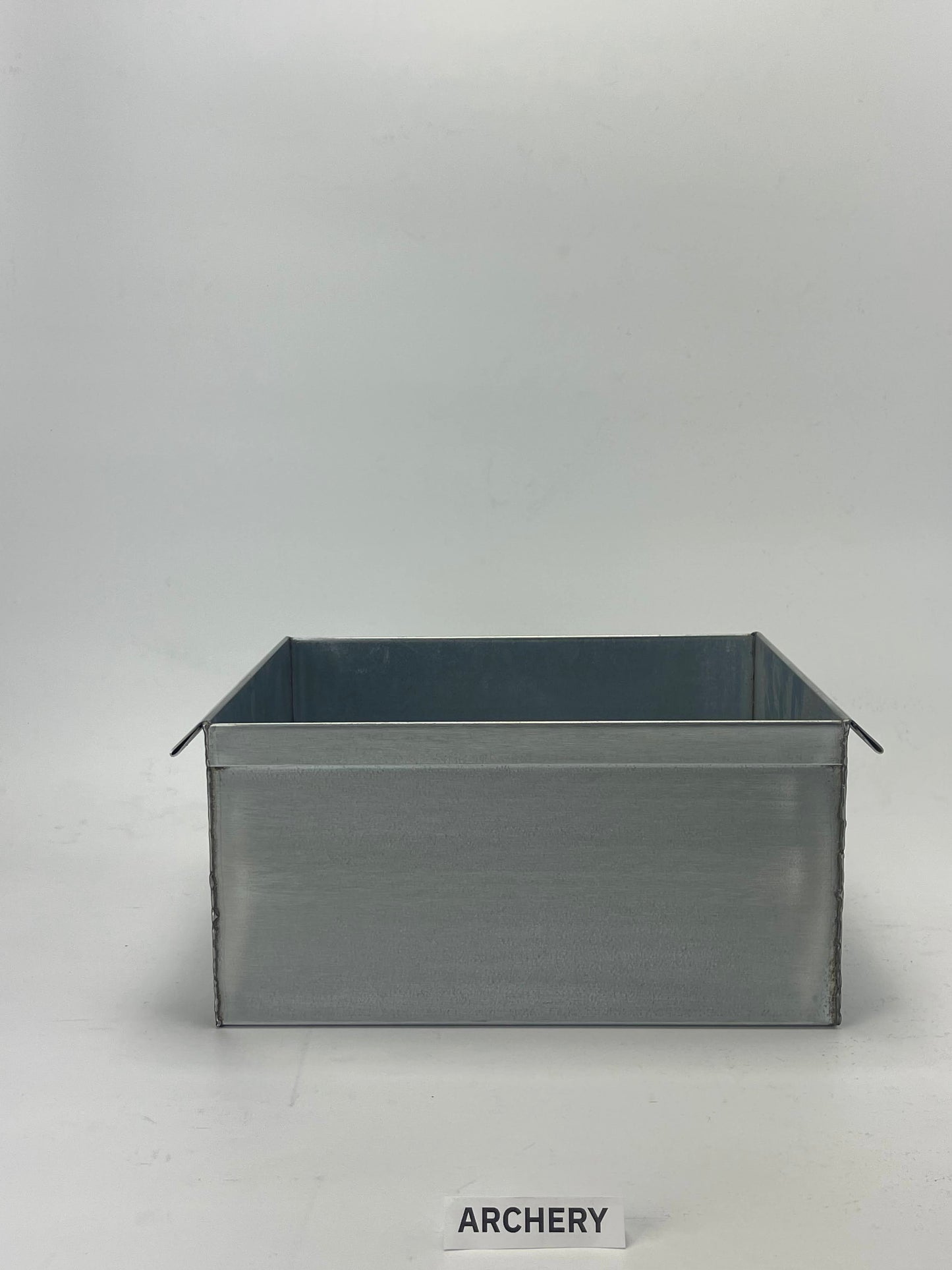

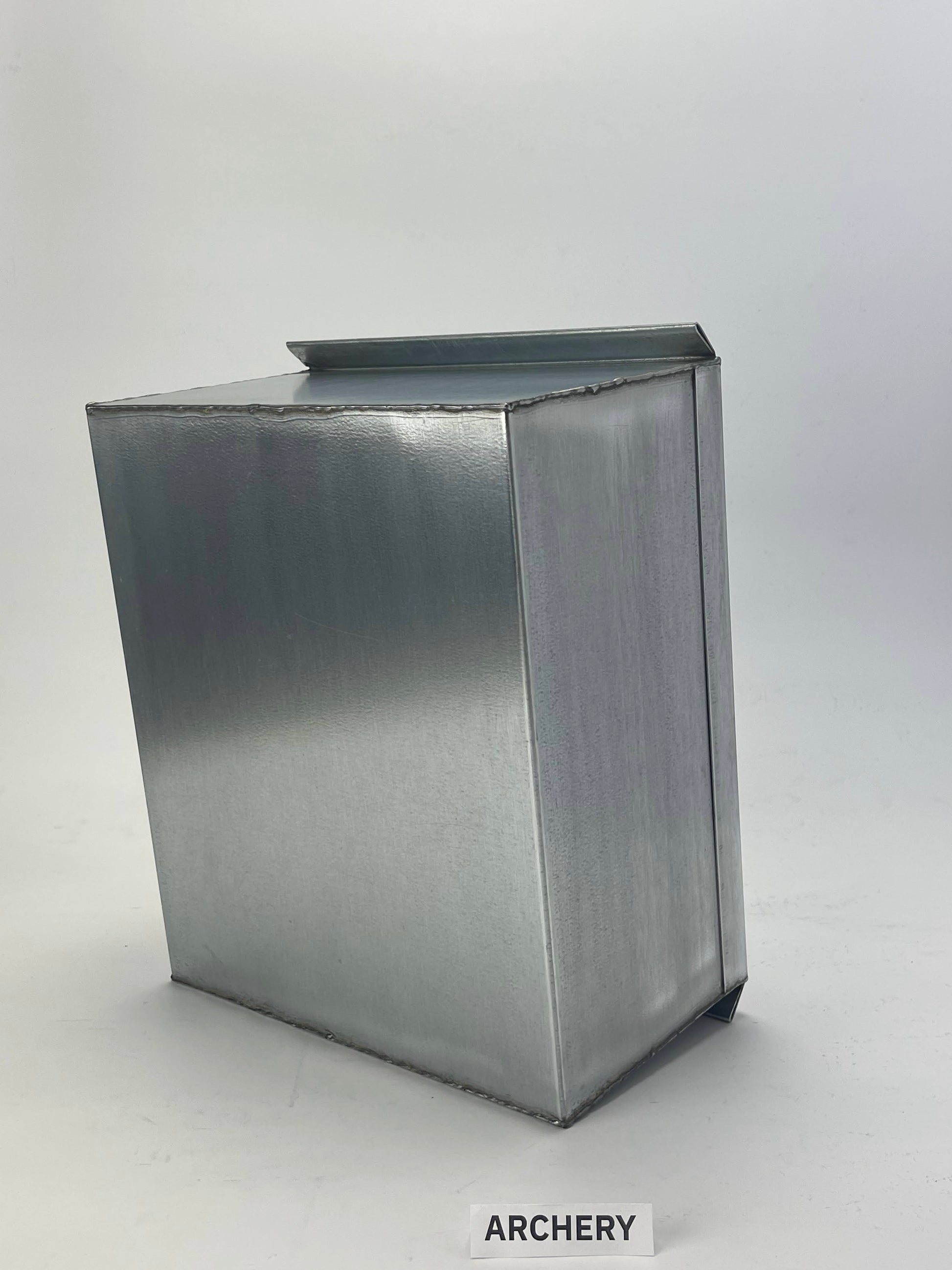

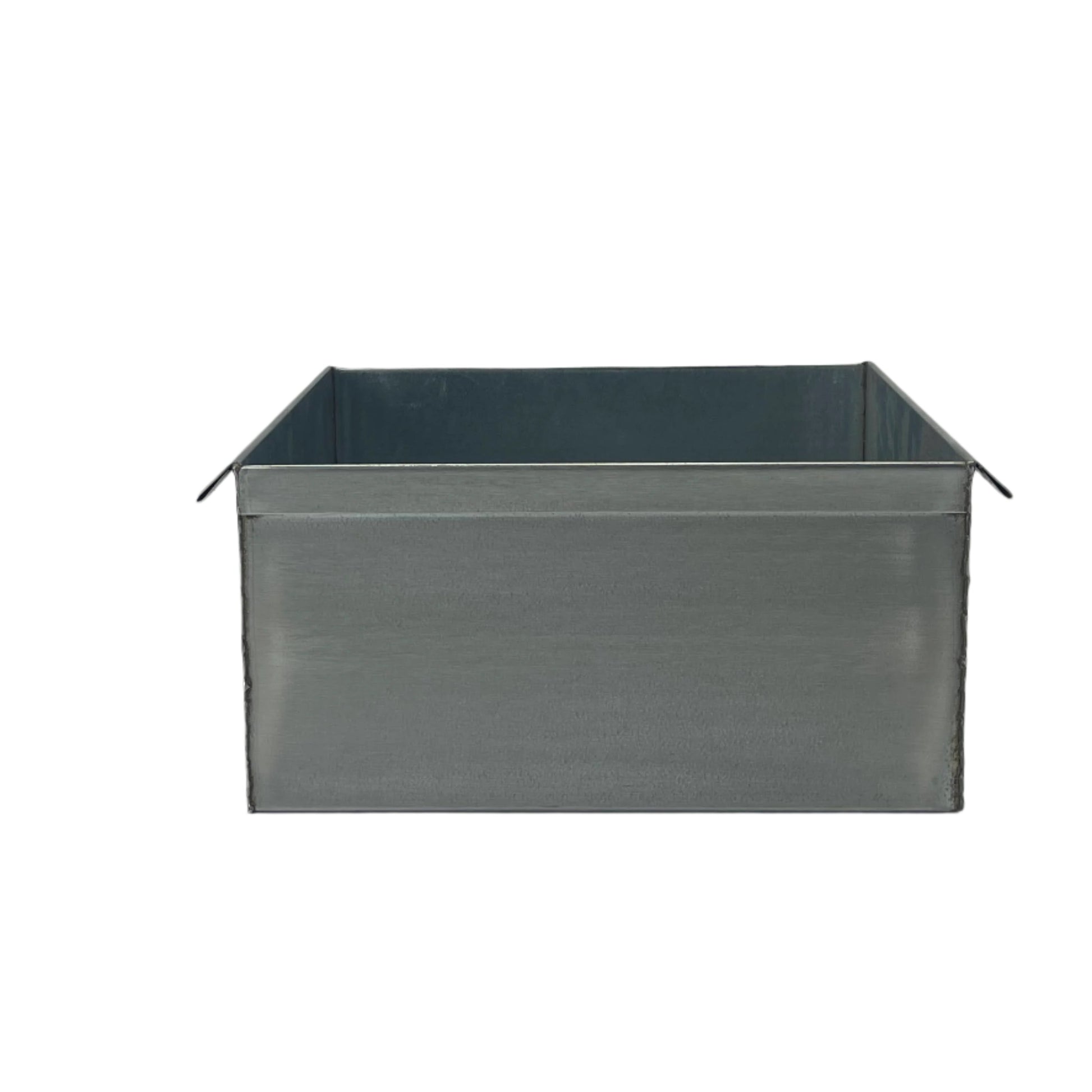

Discover the superior craftsmanship of our three-piece box! The body, forming the bottom, two sides, and ends, is expertly MIG welded for full penetration. Crafted from a single piece of 18-gauge galvanized steel, it’s bent into a U-shape for maximum durability. The top edges of the sides feature a 1 inch teardrop hem for a refined finish.

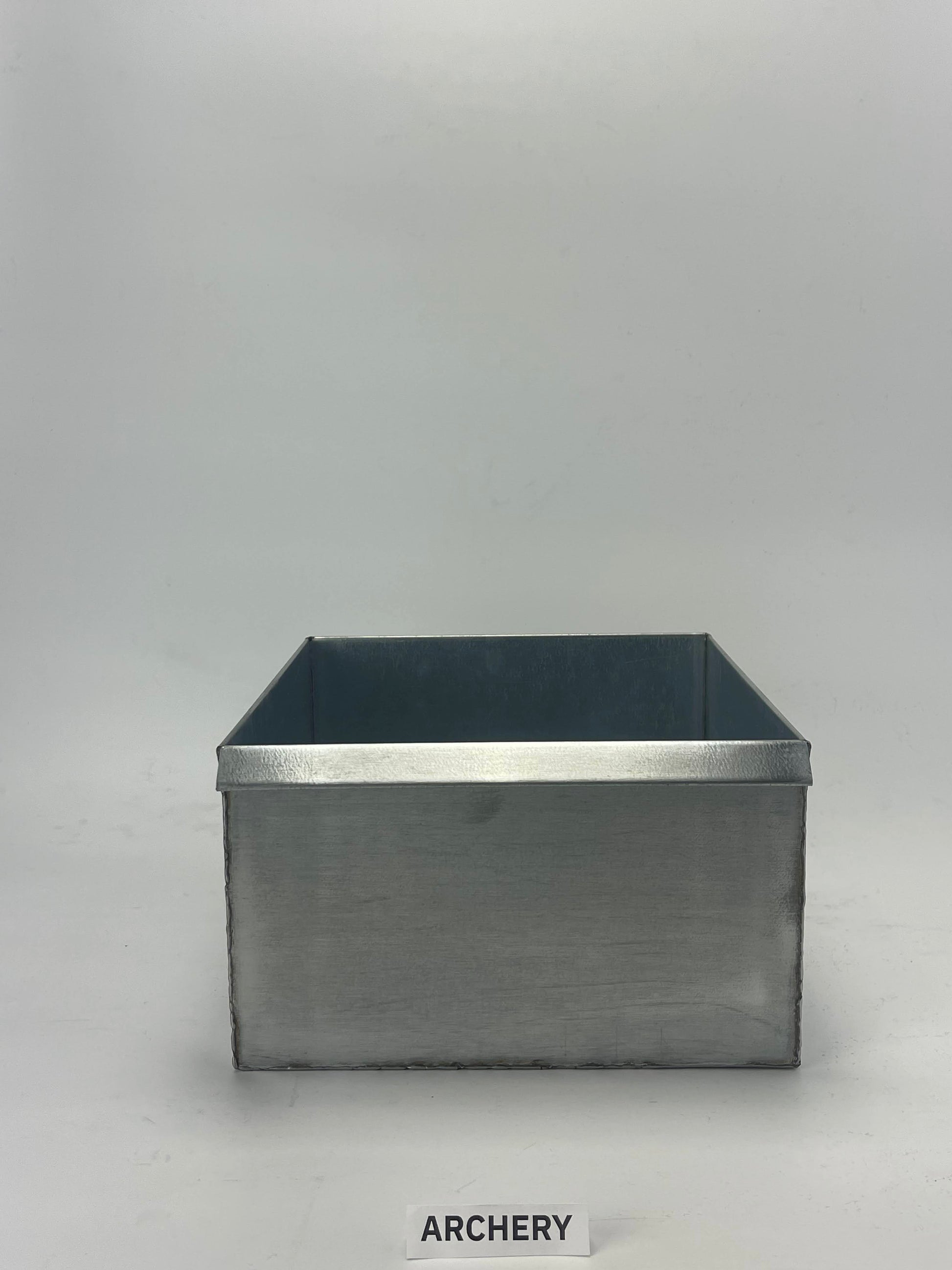

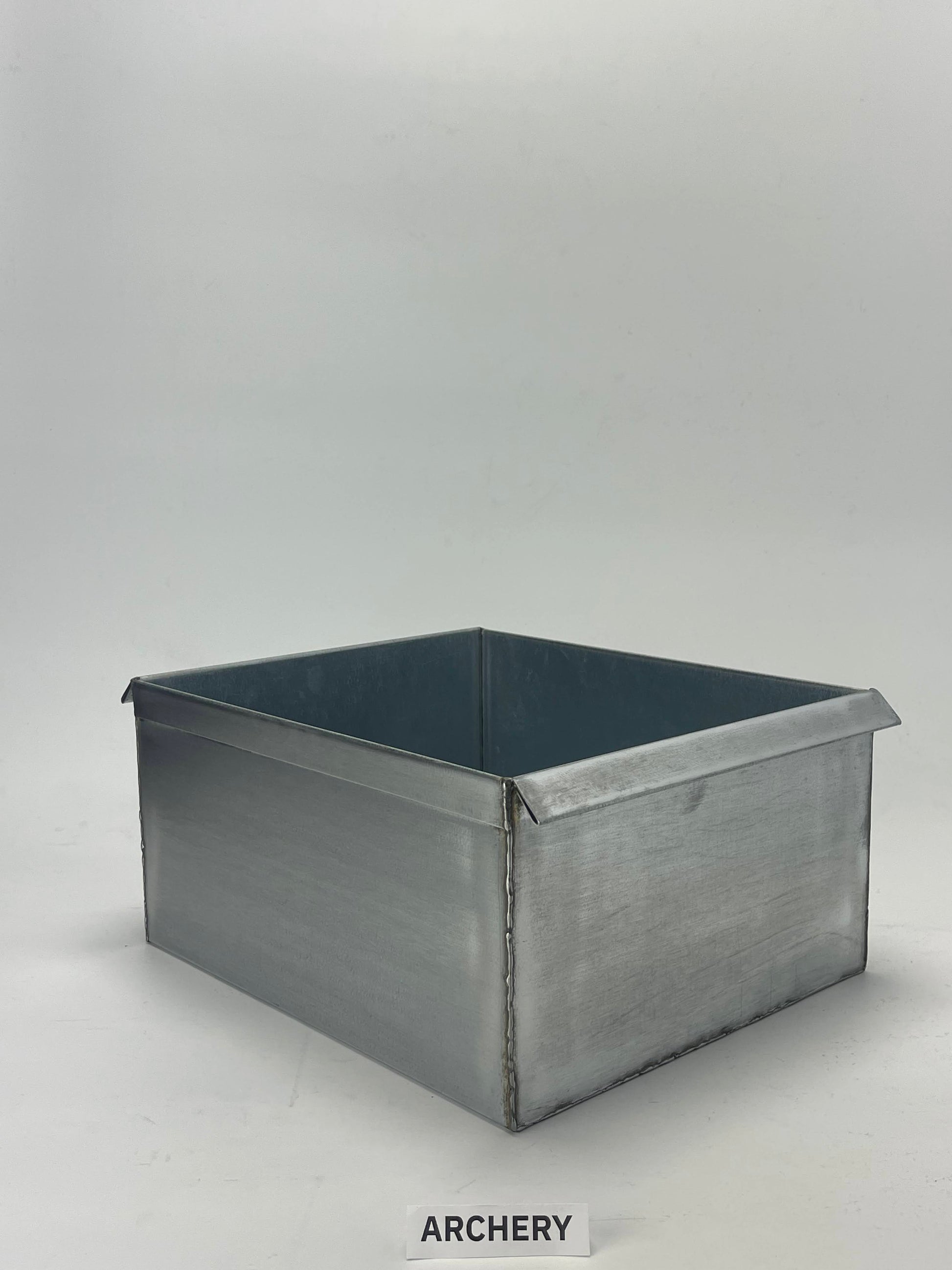

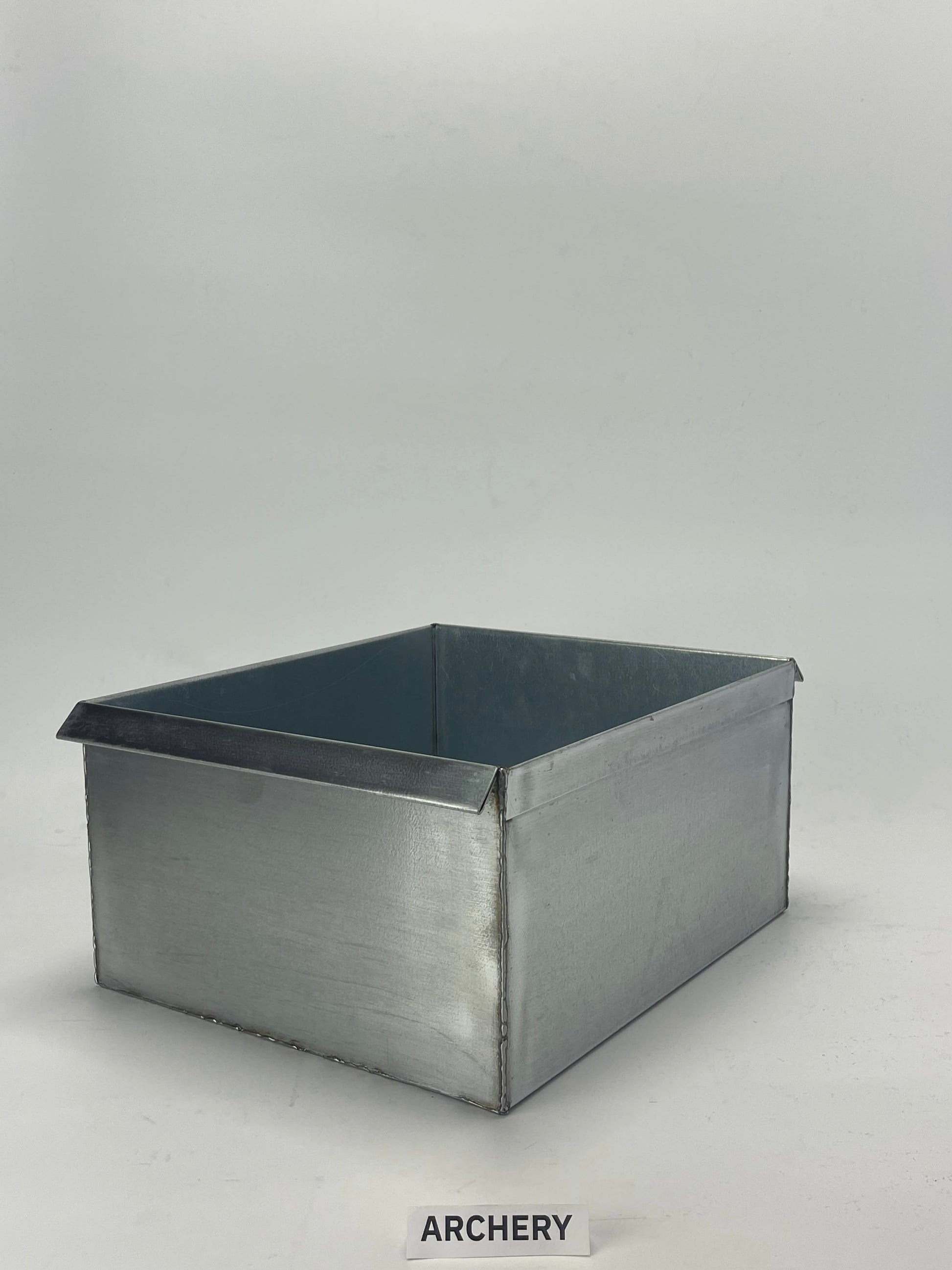

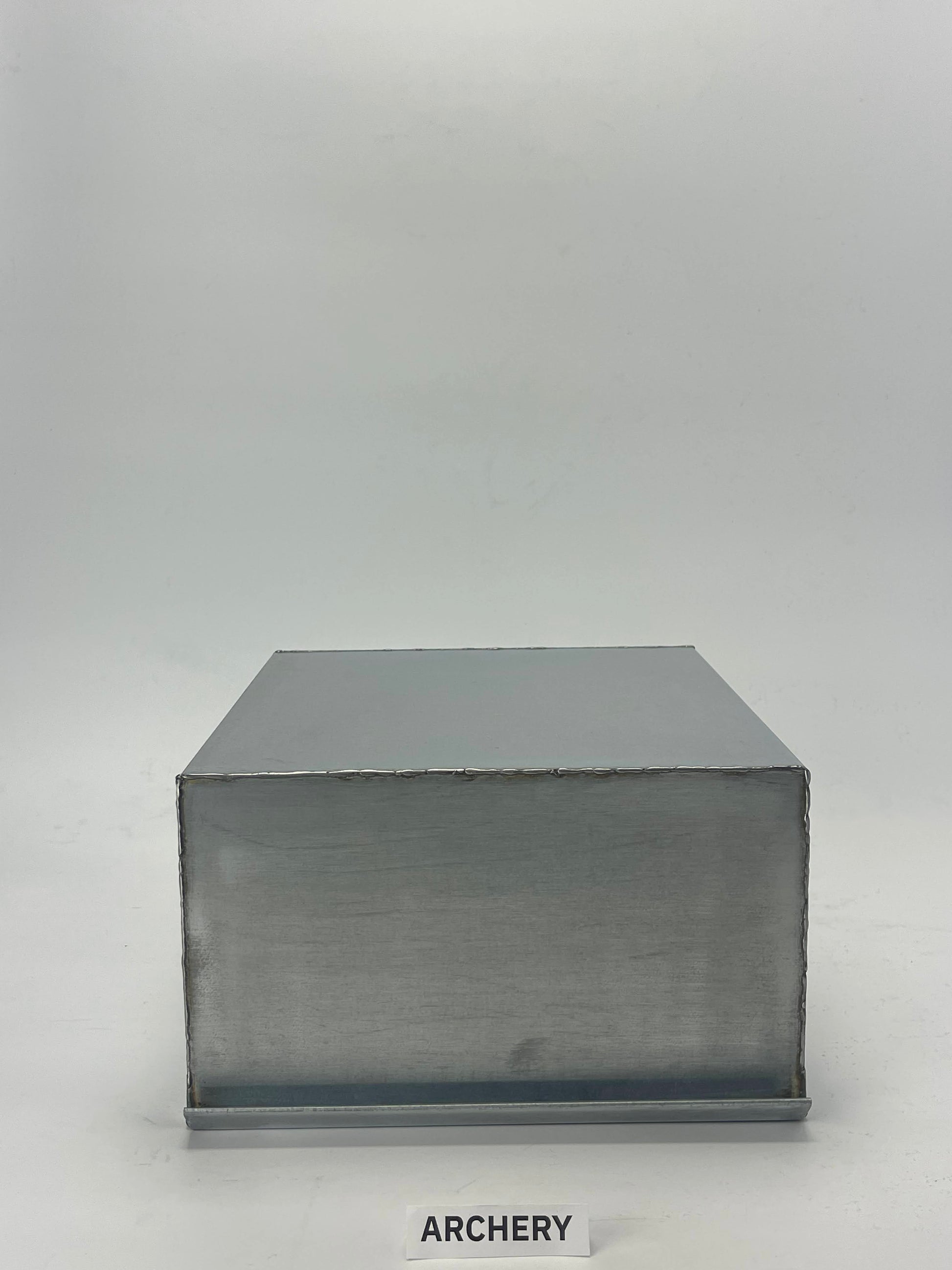

The ends, measuring 12W x 7H, include a single hemmed handle, 1 1/8 in length bent at a 45-degree angle for easy handling. Inside corners are sealed with high-temp clear silicon (500°F) by Rutland, ensuring longevity. The exterior boasts a line grain finish, achieved with a Walter line-mate III, adding a sleek, professional look. Perfect for your demanding projects!

Quick Specs

• Inside Measurements: 14L x 12W x 7H inches
• Ballistic Gel Block Size: 14L x 12W x 6H inches (1008 cubic inches³)
• Weight: 8 lbs., 8 oz.
• Body Size: 28L x 14W (392 square inches²)
• Ends Size: 9 ¼L x 12 W (111 each, total 222 square inches²)
• Total Metal Area: 614 square inches²
• Box Volume: 1176 cubic inches³
• GTIN: 10796520284613

Perfect for forming precise Archery ballistic gel blocks with ease!
