Custom Gel Mold 20L x 11W x 12H Box

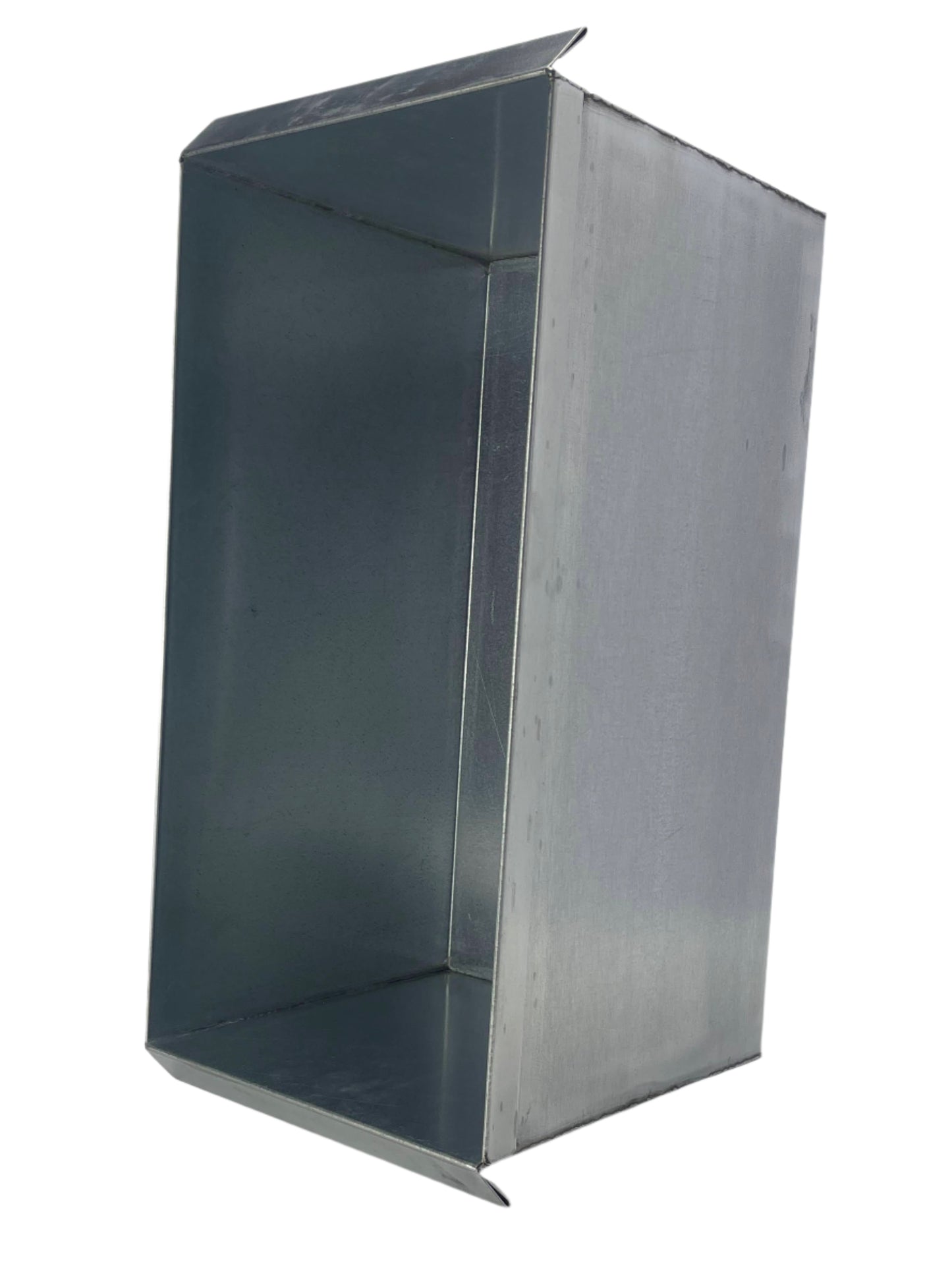

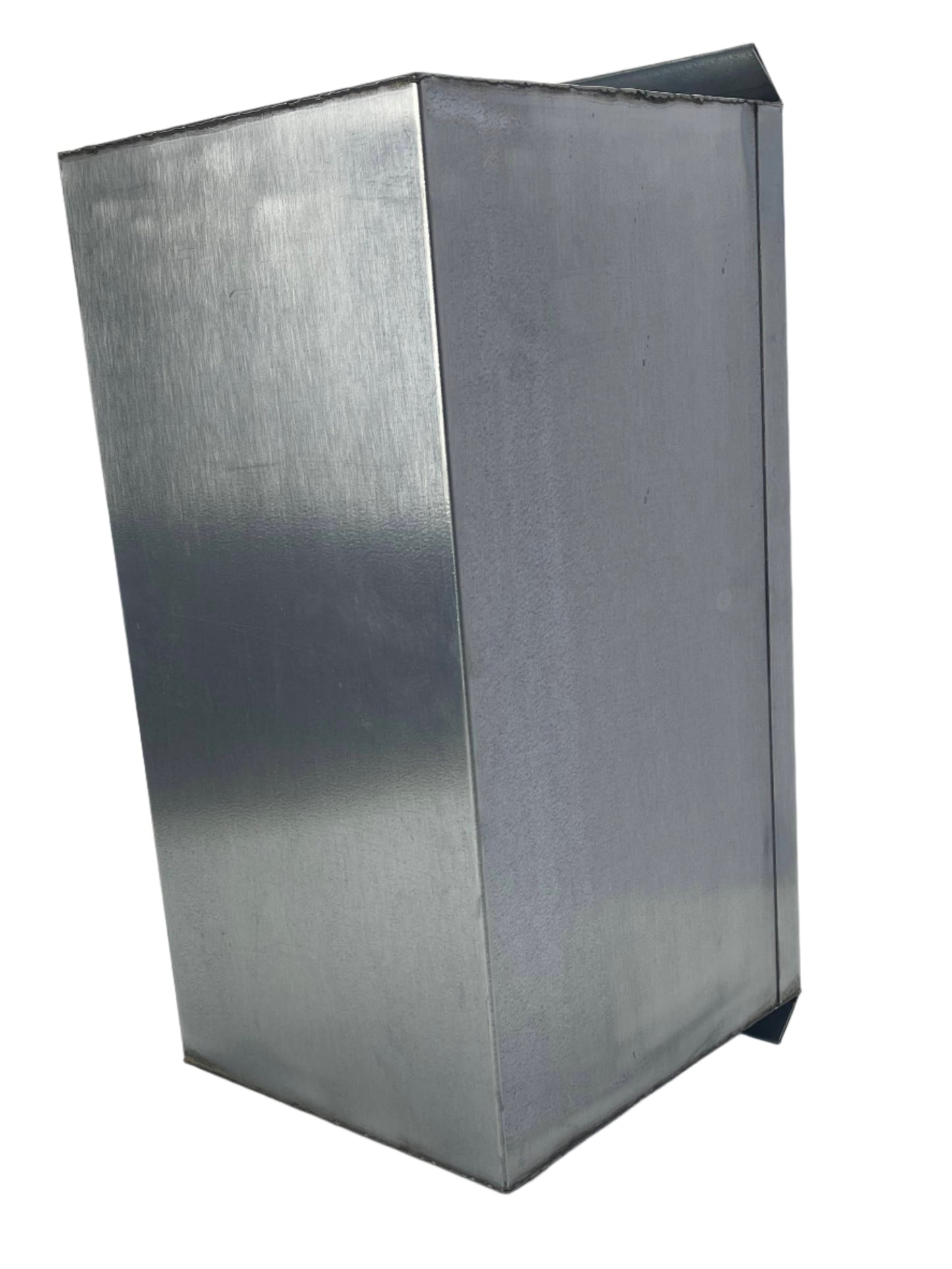

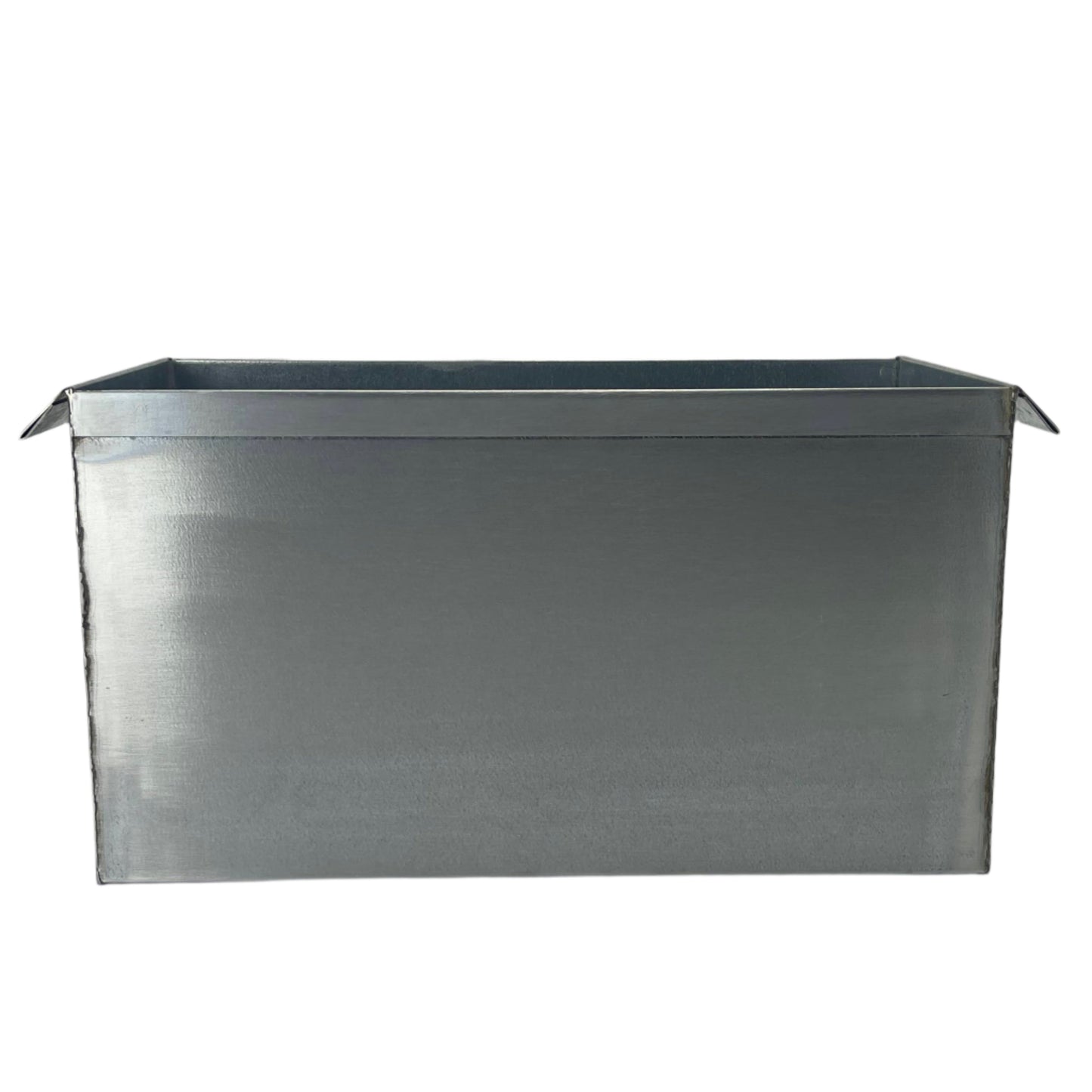

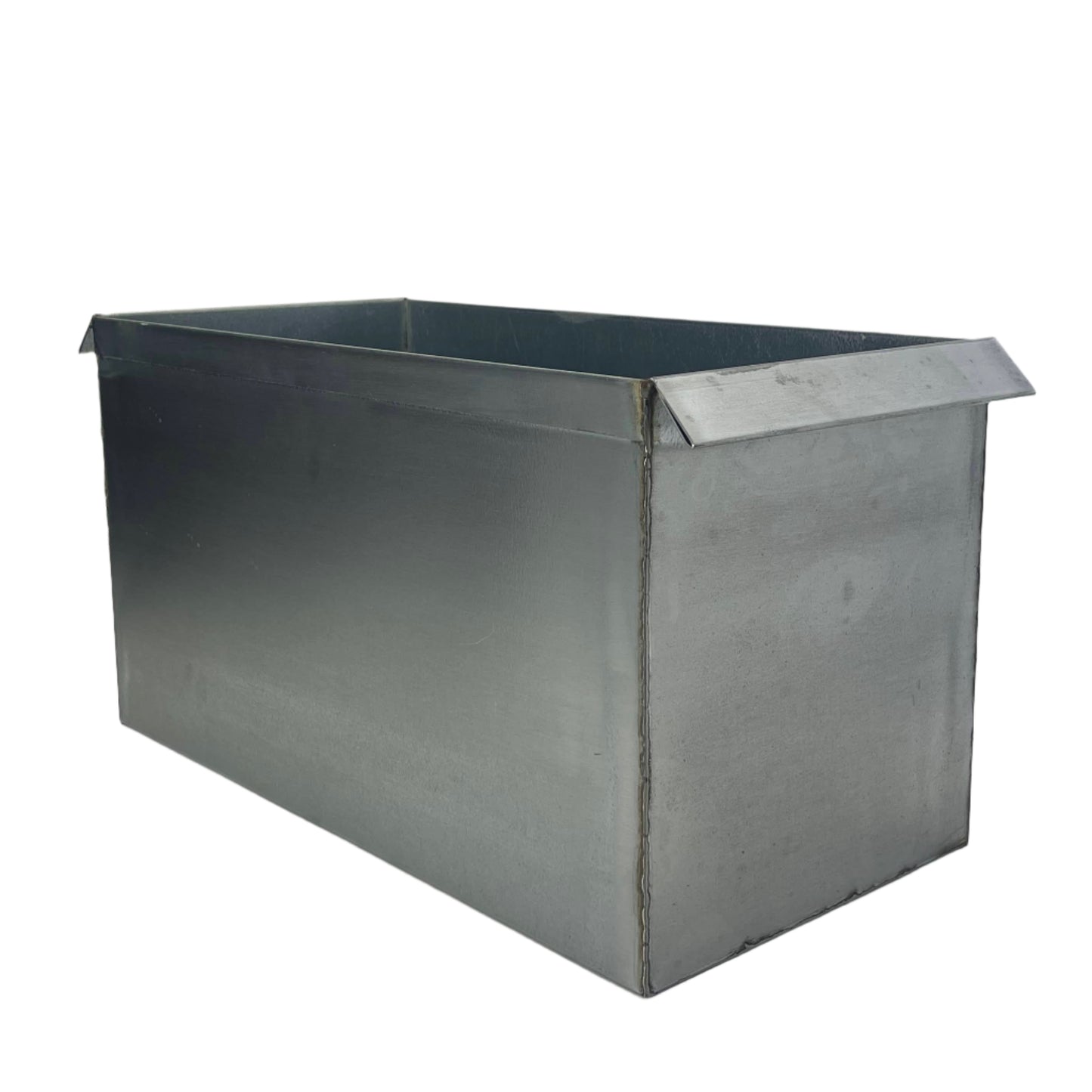

Custom Gel Mold 20L x 11W x 12H Box! This box is built by The Metal Box Company and made of 100% US sourced materials.  This boxes is one inch wider and taller than Clear Ballistics Long Range Mold! This robust, rectangular metal box is designed to produce a 20L x 11W x 12H inches gel block with rounded corners and glass-smooth sides. Crafted from galvanized hot-rolled steel, it boasts internal dimensions of 20L x 11W x 12H inches. Made with 18-gauge steel (0.0478 inches or 1.214 mm thick).

Construction Excellence

Discover the superior craftsmanship of our three-piece box! The body, forming the bottom, two sides, and ends, is expertly MIG welded for full penetration. Crafted from a single piece of 18-gauge galvanized steel, it’s bent into a U-shape for maximum durability. The top edges of the sides feature a 1 inch teardrop hem for a refined finish.

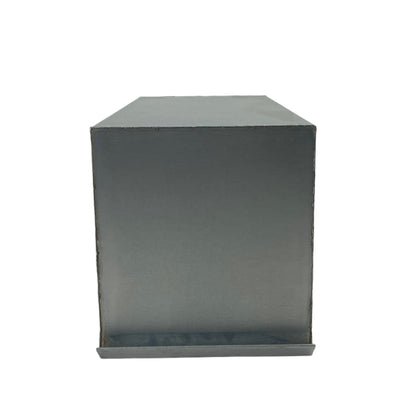

The ends, measuring 11W x 12H inches, include a single hemmed handle, 1 1/4 inches bent at a 45-degree angle for easy handling. Inside corners are sealed with high-temp clear silicone (500°F) by Rutland, ensuring longevity. The exterior boasts a line grain finish, achieved with a Walter line-mate III, adding a sleek, professional look. Perfect for your demanding projects!

Quick Specs

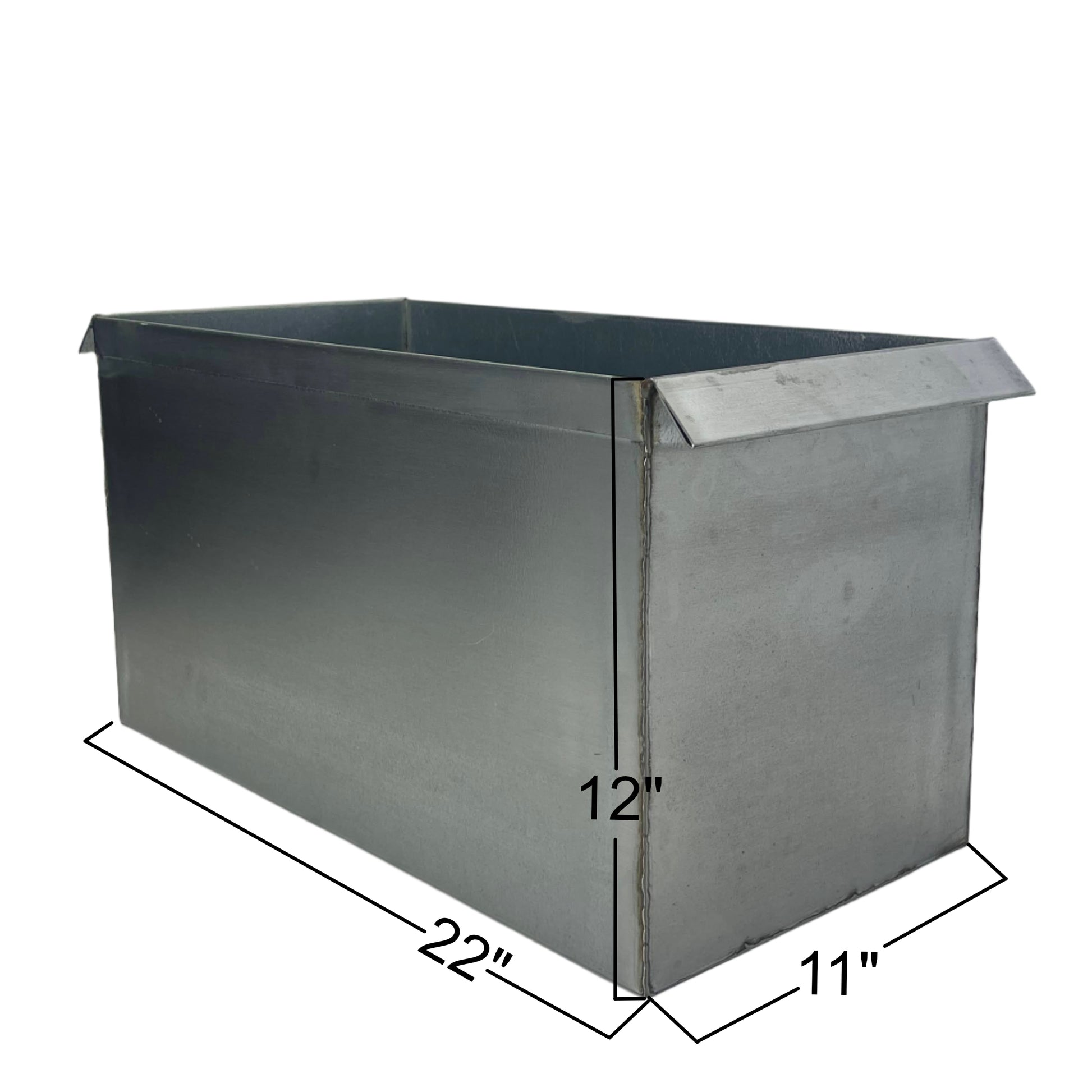

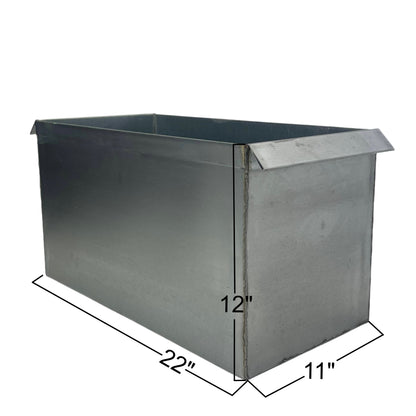

• Inside Measurements: 20 x 11W x 12H inches
• Shooting Face:  121 square inches²

• Gel Block Size: 20L x 11W x 11H (2420 cubic inches³)
• Body Size: 36L x 20W (720 square inches²)
• Ends Size: 12¼L x 10W (122.5 square inches² each)
• Total Metal Area: 964.5 square inches²
• Box Volume: 2640 cubic inches³
• GTIN: N/A

Perfect for forming precise gel blocks with ease!
