Full Swat Ballistic Gel Mold 19L x 16W x 11H Box

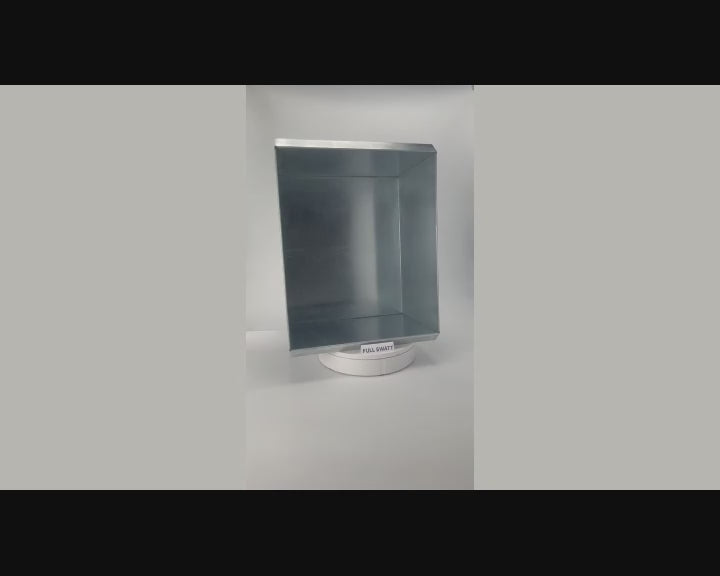

Introducing the Full Swat Ballistics Mold 19L x 16W x 11H Box! This box is built by The Metal Box Company and is made of 100% US sourced materials.  This robust, rectangular metal box is designed to produce two size blocks, Full Swat 19L x 16W x 9H inch and Half Swat 19L x 16W x 6H ballistic gel blocks with rounded corners and glass-smooth sides. Crafted from galvanized hot-rolled steel, it boasts internal dimensions of 19L x 16W x 11H inches. Made with 18-gauge steel (0.0478 inches or 1.214 mm thick), this durable box weighs just 16 lbs., 10.1 oz.. Perfect for your ballistic testing needs!

Construction Excellence

Discover the superior craftsmanship of our three-piece box! The body, forming the bottom, two sides, and ends, is expertly MIG welded for full penetration. Crafted from a single piece of 18-gauge galvanized steel, it’s bent into a U-shape for maximum durability. The top edges of the sides feature a 1 inch teardrop hem for a refined finish.

The ends, measuring 16W x 11H inches, include a single hemmed handle, 1 1/2" bent at a 45-degree angle for easy handling. Inside corners are sealed with high-temp clear silicon (500°F) by Rutland, ensuring longevity. The exterior boasts a line grain finish, achieved with a Walter line-mate III, adding a sleek, professional look. Perfect for your demanding projects!

Quick Specs

• Inside Measurements: 19L x 16W x 11H inches
• Ballistic Gel Block Sizes: Full Swat and Half Swat sizes
  • Full Swat: 19L x 16W x 9H inches (2736 cubic inches³)
  • Half Swat: 19L x 16W x 6H inches (1824 cubic inches³)
• Weight: 16 lbs., 10.1 oz.
• Body Size: 40L x 19W inches (760 square inches²)
• Ends Size: 16W X 13 ¼H inches (216 square inches² each)
• Total Metal Area: 1192 square inches²
• Box Volume: 3344 cubic inches³
• GTIN: 10796520284620


Perfect for forming precise Full Swat and Half Swat sized ballistic gel blocks with ease!
